RELIABLE & RUGGED DUST SUPPRESSION SYSTEM FOR CORE SECTOR

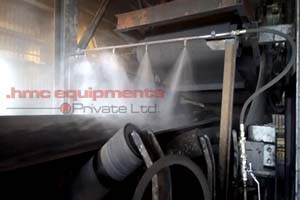

AUTOMATIC CFDS SYSTEM (COLD FOG HIGH PRESSURE DS SYSTEM)
Non electrical spray actuator (FAV-100-Flow Activation Valve) for conveyor belt transfer points (CFDS) built-in water supply valve in the equipment, which opens only on rotation of wheel and will spray only when belt is moving with load and stops spraying when belt is stationary, equipment operates only when belt is in contract with conveyor belt, however light is the load on the belt.
MAKING SURE THERE IS NO WASTAGE OF PRECIOUS WATER. (SPRAYS ON LOADED BELT)
No electrical cabling / no solenoid valve(power saved = power produced)
No laying of cabling (save in extra installation cost)
No extra power supply is needed to operate the system.
Automatic activation of system (on/off)
No man power required to activate system (will start with belt motion)
100% fail-proof (mechanical-activation)
Operates at belts speed from 100ft/min to 750 ft/min. maximum working pressure 105 bar.
No chemicals is used
Best performance can be expected for CFDS Water pressure min 50 bar (fog spray high pressure)
Avoids over wetting of belt, which causes slipping & over maintenance in all stage.
System can be installed in maximum 4hrs time without any modification.
Space required is under the belt, no ducting, & installation of bag / filters etc.
Engineered system & custom designed to every specific need.
Reduces periodical clean-up & system failure.
Maximum return on investment (years of trouble free service)
Minimum maintenance / operating cost / downtime (more – production / cleaner environment)
CONVEYOR BELT DUST SUPPRESSION SYSTEM
CATALOG
SYSTEM DESIGN
CONTROL PHILOSOPHY
.hmc. Flow Actuation Valve FAV-100 mechanical spray actuator Dust Suppression System operates without compressed air at pressure ranging up to maximum 105 bar, (auto controlled)
A water supply valve is integrally built into the unit which opens only on rotation of the driving wheel, ensuring that spraying takes place only on loaded belt. When conveyor is running empty, the belt avoids contact with the unit driving wheel thus the inbuilt valve is closed, similarly when the belt is stationary the wheel will remain static and also does not open the inbuilt valve. The slightest load of material on the Conveyor will cause the belt to deflect, and there by touch the driving wheel enabling opening of the inbuilt valve and allows passage of fluid to the pre-set spray.
The motive power is provided through the movement of the conveyor belt and no extra power source is required (POWER SAVED = POWER PRODUCED)
A manually operated valve shall also be provided to control the flow of water in case of variation in material flow.
.hmc. FAV-100 mechanical actuator Dust Suppression System eliminates fugitive dust emissions from material handling and processing.
TYPICAL APPLICATIONS
Supplying dust suppression water onto conveyor belts transporting minerals, particularly at a transfer
point, where one conveyor discharges its contents onto a second belt, and dust is often created.
Composite Set: FAV-100, Strainer, Stop valve, Spray Nozzle, Hose pipe & installation accessories.
Minimum Maintenance Requirements
System equipped with strainer at every possible end, filter water protects nozzles from clogging, means an extended maintenance interval, and no water treatment / chemicals are required.
